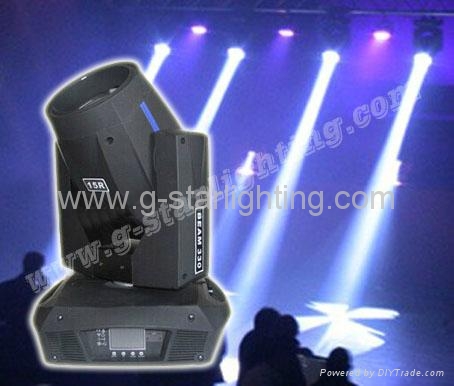

Name: 15R 330W moving head light
Model: GS-B330
Technical Specifications:
voltage:AC90～240V 50/60HZ
Power: 550W
Lamp:15R 330W(YOU DENG)
Color Temperature: 6000K
Control Mode: DMX512
Channel: 16CH
Single input: 3 Core XLR
Single Output: 3 Cores XLR
Pan scan: 540°(16bit) Electric correction
Tilt scan: 270°(16bit) Electric correction
Color Wheel: 14 Color + White, Single rotation rainbow effect, two models changing ( Full color and half color operating)
Gobos: 7 gobos + white, Double rotation rainbow effect
Strobe: 13 t/s, free strobe and Pulse strobe
Controller function:controller can be with reset function
Vertical angle:0°~270°
Stepping mode: 255 user-programmable steps without DMX controller mode
Pattern：automatic pattern/sound activate/master-slave control/DMX
The largest external temperature: 40°
Cooling System: Fan
Unprecedented brightness – comparable to wattages many times higher
8-facet rotating prism
Mechanical dimmer
Rapid and extensive pan and tilt movements
New, high-performance electronics
Eco-friendly: replaces far larger and more expensive spotlights
Electronic ballast fitted as standard
Packing size:490*470*580mm
Net weight:24kg
Performance trait:
Philips Lamp
completely parallel to the beam,similar to the laster beam,and no nimbus and no halo
adjustable beam angle from 0 to 3.8°
compared with a variety of lighting,the power is higher for several times(20m 59800LX)
8 kinds of patterns of self-turntable Gobo
8prism
X and Y(Pan&Tilt)loudspeaker mute and fast movement
high-performance electronic components,small size,light weight,easy to transport(only 15kg)
environmental protection,replaced the big expensive beam light.
high-performance electronic ballasts
